提供最佳的清澈闪亮的水质
Galaxy 单一纸芯缸采用高强度、抗紫外线材料制成,可延长产品使用寿命。紧凑、低高度设计适用于任何水池,特别是系统设置空间有限的水池。滤芯广泛的污垢捕捉能力使这个过滤器非常高效。水晶般清澈的水的可靠选择。
产品特性

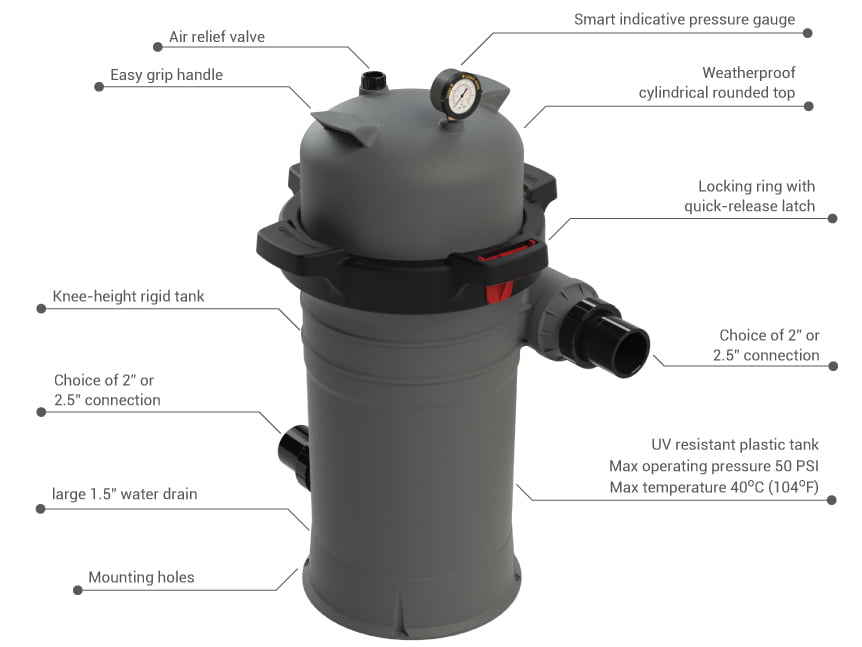

产品焦点
Galaxy Single-Element Cartridge Filter User Manual (English)
Galaxy Single-Element Cartridge Filter with Anti-microbial Element User Manual (English)
| Key No. | Part No. | Description | Piece(s) Required |
|---|---|---|---|
| 1 | 117068519 | Pressure gauge 60psi , plastic casing | 1 |
| 2 | 550188198 | Upper Body ICF100 | 1 |
| 2 | 550188199 | Upper Body ICF150 | 1 |
| 2 | 550188200 | Upper Body ICF200 | 1 |
| 3 | 570818164 | Nut D22X15 | 1 |
| 4 | 550058153 | Lock Ring | 1 |
| 5 | 550058196 | Latch | 1 |
| 6 | 11000036 | O-ring D306Xd7.5 | 1 |
| 7 | 430178159 | Union nut 2" | 2 |
| 8 | 430308158 | Union 2inch/2.5inch ANSI | 2 |
| 9 | 111040071 | O-ring D77Xd62X8 | 2 |
| 10 | E140401 | ICF100-200 Bottom Body | 1 |
| 11 | E160553 | End cap with O-ring | 1 |
| 12 | E010201 | Air Release Valve screw with O-ring | 1 |
| 13 | 570818165 | Nut D31X20 14G | 1 |
| 14 | 914100004 | ICF100 Element | 1 |
| 14 | 914100005 | ICF150 Element | 1 |
| 14 | 914100006 | ICF200 Element | 1 |
| 15 | 107048520 | PVC Pipe 2.5inch for ICF100, 387 mm | 1 |
| 15 | 107048520 | PVC Pipe 2.5inch for ICF150, 440mm | 1 |
| 15 | 107048520 | PVC Pipe 2.5inch for ICF200, 517mm | 1 |
| 16 | 550128166 | ICF100-200 Center Drain connection | 1 |
