EcoFlow Variable Speed Pump
For residential pools and spa
EcoFlow Variable Speed Pump
For residential pools and spa
- Share
Previous
Next
HIGH PERFORMANCE & SAVE ENERGY
Emaux EcoFlow variable speed pumps combine an innovative pump design with a high-performance motor to reduce energy costs compared to less efficient single-speed pumps, achieving superior efficiency up to 86% and exceeding industry standards. Easy installation and a user-friendly experience simplify pool maintenance. This core combination delivers unmatched performance, reliability, optimized water flow, and energy savings for both new and existing pools and spas.
Product Features

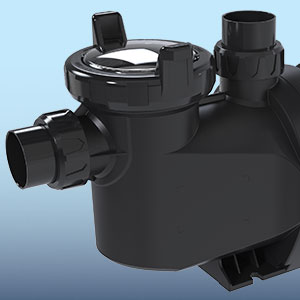

- Self-priming up to 3.3m above water level
- Feasible union design for both imperial andmetric standard
- Robust suction-resistant filter basket with specially designed filter holes
- Direct replacement for other model pumps
- Class insulation Class F
- Thermal or over current protection
- IPX5 Waterproof Standard
- Basket volume 2L

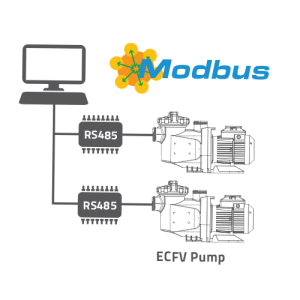

New Connectivity and External Smart Control
IoT Connection:
An IoT version can be controlled and monitored over an internet connection, enabling users to manage pool functions remotely. This connectivity allows for real-time adjustments, automated scheduling, and enhanced efficiency in maintaining optimal water quality.
Product Features
| Ver: 20260511 | |||
|---|---|---|---|
| Key No. | Part No. | Description | Piece(s) Required |
| 1 | 12401303 | Nut For Lid-A | 1 |
| 2 | 12405030 | Transparent Lid | 1 |
| 3 | 51503003 | O-Ring For Lid | 1 |
| 4 | 12418038 | Basket | 1 |
| 5-a | 12401302 | Pump union nut EcoFlow | 2 |
| 5-b | 51503230 | EPDM O-Ring | 2 |
| 5-c | 12435107 | Pump Fittings EcoFlow 1.5"Inch | 2 |
| 5-c | 12435106 | Pump Fittings EcoFlow 1.5"Metric | 2 |
| 5-d | 12435108 | Pump Fittings EcoFlow 2"Inch | 2 |
| 5-d | 12435109 | Pump Fittings EcoFlow 2"Metric | 2 |
| 6 | 40201016 | Drain Plug With O-ring | 1 |
| 7 | 10203031 | Pump body-A | 2 |
| 8 | 51503061 | O-Ring For Diffuser | 1 |
| 9 | 10211010 | Diffuser | 1 |
| 10 | 40201008 | Screw for impeller with O-ring | 1 |
| 11 | 10215055 | SPV/ETV125 Impeller | 1 |
| 11 | 10215056 | SPV/ETV165 Impeller | 1 |
| 12 | 40201199 | 3/4?Mechanical seal | 1 |
| 13 | 51503074 | O-Ring for Flange | 1 |
| 14 | 12417061 | Flange | 1 |
| 15 | 51401039 | M8*35 Screw | 4 |
| 16 | 51401035 | M8*30 Screw | 4 |
| 17 | 40301193 | TYC-48S(1.25HP)Motor | 1 |
| 17 | 40301192 | TYC-48M(1.65HP)Motor | 1 |
| 18 | 12411169 | base | 1 |
| 18 | 51504197 | base support pad | 1 |
| 19 | 12405028 | Transparent Lid for Control box | 1 |
| 20 | 10207037 | upper Control box | 1 |
| 20 | 10207038 | bottom Control box | 1 |
| 20 | 50911139 | Control PCB(T1) | 1 |
| 21 | 10308015 | Fan Cover | 1 |
