EcoWave Variable Speed Pump
For residential pools and spa
EcoWave Variable Speed Pump
For residential pools and spa
- Share
Previous
Next
86% EFFICIENT. EFFORTLESS TO RUN
Emaux EcoWave variable speed pumps revolutionize pool operation: Slash energy costs, achieve superior efficiency (up to 86%), and exceed standards. Through an innovative pump body design providing enhanced self-priming, paired with a high-performance motor, easily installed for a user-friendly experience. Simplify maintenance while gaining optimized flow, proven reliability, and significant savings—ideal for both new builds and existing pools & spas.
Product Features

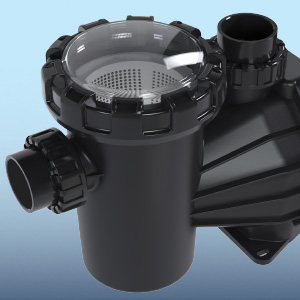

- Self-priming up to 3.3m above water level

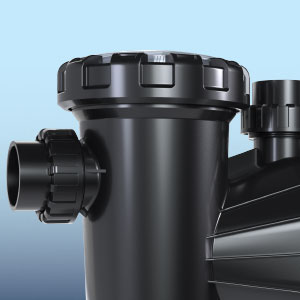

- Feasible union design for both imperial andmetric standard
- Robust suction-resistant filter basket with specially designed filter holes
- Direct replacement for other model pumps
- Class insulation Class F
- Thermal or over current protection
- IPX5 Waterproof Standard
- Basket volume 3L

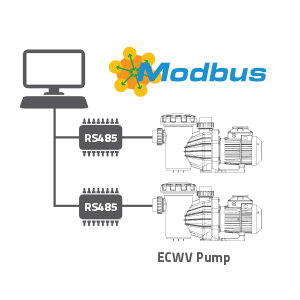

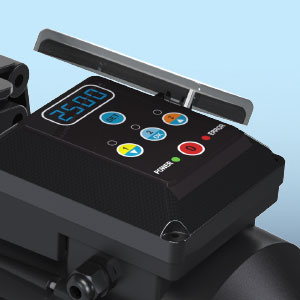

Connectivity and External Smart Control
IoT Connection:
An IoT version can be controlled and monitored over an internet connection, enabling users to manage pool functions remotely. This connectivity allows for real-time adjustments, automated scheduling, and enhanced efficiency in maintaining optimal water quality.
Product Features
| Ver: 20260707 | |||
|---|---|---|---|
| Key No. | Part No. | Description | Piece(s) Required |
| 1 | 12401307 | Nut For Lid | 1 |
| 2 | 10204003 | Transparent Lid | 1 |
| 3 | 51503315 | O-Ring For Lid | 1 |
| 4 | 12418039 | Basket | 1 |
| 5 | 10203034 | Pump body | 1 |
| 6 | 12401301 | Adaptor | 2 |
| 6 | 12435111 | 1.5" Union | 2 |
| 6 | 12435110 | 2"Union | 2 |
| 6 | 51503316 | O-Ring | 2 |
| 7 | 40201016 | Drain Plug With O-ring | 2 |
| 8 | 51503061 | O-Ring For Diffuser | 1 |
| 9 | 10211010 | Diffuser | 1 |
| 10 | 40201008 | Screw for impeller with O-ring | 1 |
| 11 | 10215055 | SPV/ETV125 Impeller For ECWV125 | 1 |
| 11 | 10215056 | SPV/ETV165 Impeller For ECWV125 | 1 |
| 11 | 40201180 | 3/4?Mechanical seal | 1 |
| 11 | 51503074 | O-Ring for Flange | 1 |
| 11 | 12417063 | Flange | 1 |
| 12 | 51401035 | M8*25 Screw with Washer For Motor | 4 |
| 13 | 51401191 | M8*30 Screw | 8 |
| 14 | 40301109 | TYC-48S(1.25HP)Motor For ECWV125 | 1 |
| 15 | 40301110 | TYC-48M(1.65HP)Motor For ECWV165 | 1 |
| 16 | 12411176 | Base | 1 |
| 17 | 12405028 | Transparent Lid for Control box | 1 |
| 17 | 10207037 | upper Control box | 1 |
| 17 | 10207038 | bottom Control box | 1 |
| 17 | 50911090 | Control PCB(Tuya 1-11CH) | 1 |
| 17 | 50911089 | Control PCB(Tuya 1-13CH) | 1 |
| 18 | 10308015 | Fan Cover | 1 |
