ROBUST PUMPS FOR ABOVE-GROUND POOLS
The Emaux All-Star series pump is specifically designed as a superior pump for above-ground pools. Heavy duty construction and advanced engineering deliver high flow performance and reliability. It offers a powerful, quiet, and a long operational lifespan.

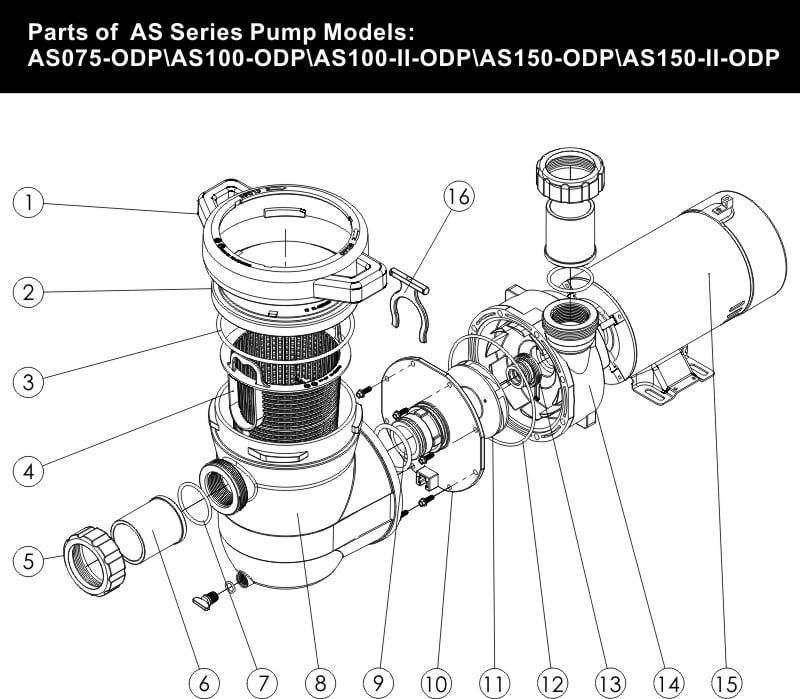

Exploded Diagram:
Product Features
- Includes a motor shroud for Canada versions and a mounting base. All components are molded in corrosion-proof reinforced thermoplastic for superior strength and reliability.
- Easy access discharge port allows conversion from vertical to horizontal discharge orientation.
- 1.5” PVC pipe union or NPT thread to 1.25” – 1.5” hose band adaptor for quick inlet/outlet hose connection.
- Large debris basket with see-through lid reduces cleaning frequency. Twist-Lock lid design enables hassle-free access to the basket.
- Optimal volute and impeller design provides an excellent hydraulic performance.
- Suitable for in-ground pools: self-priming vertical lift up to 5ft (1.5 metres).
- Super quiet operation especially for dual-speed models.
- Heavy duty high performance motor with automatic thermal overload protection.
AS Series Pump
AS-ODP Series (American Version)
ASC-ODP Series (Canadian Version)
| Key No. | Part No. | Description | Piece(s) Required |
|---|---|---|---|
| 01 | 420407395 | Nut For Lid | 1 |
| 02 | 420387395 | Transparent Lid | 1 |
| 03 | 111010048 | O-Ring for Lid | 1 |
| 04 | 420237395 | Basket with Handle | 1 |
| 05 | 420307395 | 1.5" UNION NUT | 2 |
| 06 | 420220904 | 1.5"Union | 2 |
| 07 | 111002362 | O-Ring for 1.5" Union | 2 |
| 08 | 420247395 | Pump Pre-Filter | 1 |
| 09 | 111010049 | O-Ring | 1 |
| 10 | 420037395 | Pump Body Cover | 1 |
| 11 | 420366599 | Impeller AS0.5HP | 1 |
| 11 | 420367744 | Impeller AS0.75HP | 1 |
| 11 | 420367745 | Impeller AS1.0HP | 1 |
| 11 | 420367746 | Impeller AS1.5HP | 1 |
| 12 | 111010050 | Waterproof washer | 1 |
| 13 | 113006600 | Mechanical Seal | 1 |
| 14 | 420047395 | Lower part of Pump Body | 1 |
| 15 | 420327395 | Arm in arm | 1 |
| 16 | 01111029 | base | 1 |
| 17 | 42059057754 | EM316-MotorYYWB3-0.5-AS | 1 |
| 17 | 42059057756 | EM316-MotorYYWB3-0.75-AS | 1 |
| 17 | 42059057757 | EM316-MotorYYWB3-1.0-AS | 1 |
| 17 | 42059057758 | EM316-MotorYYWB3-1.5-AS | 1 |
| 18 | 420170879 | Fan Cover | 1 |
| 19 | 106241444 | Capacitor 8uf | 1 |
| 19 | 106241421 | Capacitor 14uf | 1 |
| 19 | 106241424 | Capacitor 20uf | 1 |
| 19 | 106241604 | Capacitor 30uf | 1 |
| 20 | 420270893 | Cap Cover | 1 |
| 20 | 02010241 | Gasket | 1 |
